The Role of Equipment Maintenance in Freeze Drying Operations

1. Introduction

Freeze drying is a multi-phase process involving product freezing, primary drying (sublimation), and secondary drying (desorption). Each phase is highly sensitive to equipment performance. Even minor deviations in temperature uniformity, chamber pressure, or condenser capacity can compromise product quality attributes such as residual moisture content, reconstitution time, and long-term stability.

Unlike many industrial processes, lyophilization is frequently applied to high-value, time-sensitive products where batch failures carry significant financial and regulatory consequences. As such, the importance of rigorous, systematic equipment maintenance cannot be overstated. A well-designed preventive maintenance (PM) schedule reduces the risk of unexpected failures, ensures that the equipment operates within validated parameters, and supports compliance with Good Manufacturing Practice (GMP) requirements.

This article provides a structured technical overview of the core maintenance activities required to sustain freeze drying equipment in optimal condition.

2. Chamber and Shelf Cleaning

2.1 Rationale

The drying chamber and product shelves are the primary zones of product contact during lyophilization. Residual product, buffer salts, excipients, or microbial contaminants from previous cycles can accumulate on surfaces, posing cross-contamination risks and potentially affecting heat transfer characteristics. In regulated manufacturing environments, validated cleaning procedures are mandatory between product campaigns.

2.2 Best Practices

•       Perform a visual inspection of chamber interior, shelf stacks, and door seals after each cycle or campaign.

•       Use validated cleaning agents appropriate for product residues, followed by a purified water rinse and drying.

•       For equipment subject to GMP regulations, implement Clean-in-Place (CIP) or Steam-in-Place (SIP) protocols where applicable.

•       Document all cleaning activities, lot numbers of cleaning agents used, and personnel signatures in the equipment logbook.

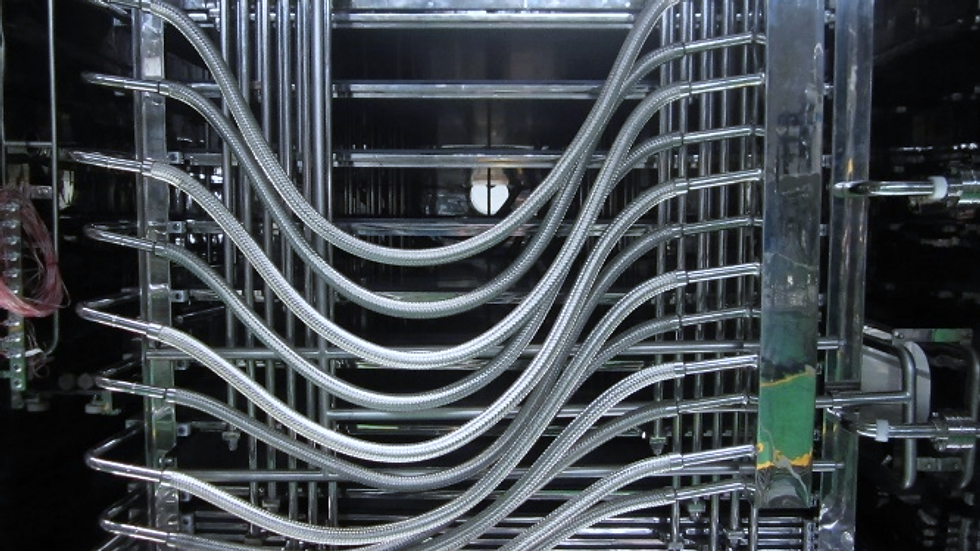

•       Periodically disassemble shelf stacks for deep cleaning and inspection of internal heat transfer fluid pathways.

3. Vacuum Pump Inspection and Oil Maintenance

3.1 Rationale

The vacuum pump is the cornerstone of the freeze drying system, responsible for evacuating the chamber to the low pressures required for sublimation (typically 0.01–0.3 mbar). Rotary vane pumps, the most common type, rely on clean, correctly viscosity-rated oil for lubrication, sealing between vane and stator, and heat dissipation. Contaminated or degraded pump oil — often evidenced by discolouration, increased viscosity, or emulsification — leads to reduced pumping speed, elevated ultimate pressure, and accelerated mechanical wear.

3.2 Best Practices

•       Check oil level and colour at the frequency specified by the manufacturer — typically every 500 operating hours or quarterly.

•       Change pump oil immediately if discolouration, cloudiness, or water contamination is observed.

•       Install and maintain inlet cold traps or mist filters to prevent water vapour and solvent vapours from reaching the pump.

•       Monitor pump-down time and ultimate vacuum level as indicators of pump health; deviations from baseline may indicate oil degradation or vane wear.

•       Retain oil change records including oil type, lot number, and disposal documentation to demonstrate GMP compliance.

4. Seal and Gasket Integrity

4.1 Rationale

Maintaining chamber vacuum integrity is dependent on the condition of all elastomeric seals and gaskets, including door seals, port seals, sight glass gaskets, and any flanged connections. Seal degradation — caused by thermal cycling, chemical exposure, or mechanical compression set — results in vacuum leaks. Even minor leakage can elevate chamber pressure above the target setpoint, inhibiting sublimation and extending cycle time. In severe cases, atmospheric ingress can introduce moisture and compromise product quality irreversibly.

4.2 Best Practices

•       Perform a routine vacuum leak test (e.g., rate-of-rise test) at scheduled intervals to quantify system leakage; typical acceptance criteria require < 0.01 mbar/min rise rate.

•       Visually inspect door seals and gaskets for cracking, flattening, cuts, or surface deposits before each operational campaign.

•       Replace seals and gaskets at manufacturer-recommended intervals or whenever leak test results trend towards the acceptance limit.

•       Use only manufacturer-approved seal materials (e.g., silicone, Viton, EPDM) suited for the temperature range and chemical environment.

•       Apply a thin film of compatible lubricant to door seals to prevent adhesion and extend service life.

5. Calibration of Temperature Sensors and Pressure Gauges

5.1 Rationale

Accurate measurement of shelf temperature and chamber pressure is fundamental to reproducible lyophilization cycles. Process control algorithms, cycle endpoint determination, and product quality release decisions all depend on the fidelity of these measurements. Sensor drift — gradual deviation of a measured value from true value — is an inherent characteristic of all instrumentation and must be managed through periodic calibration against traceable reference standards.

5.2 Best Practices

•       Calibrate temperature sensors (RTDs, thermocouples) and pressure transducers (Pirani gauges, capacitance manometers) at intervals defined in the equipment qualification protocol — typically annually or more frequently for critical applications.

•       Use calibrated reference standards traceable to national or international metrology institutes (e.g., NIST, NPL).

•       Perform calibration at multiple points spanning the operational range (e.g., -60°C to +60°C for temperature).

•       Document calibration results with as-found and as-left values; investigate any out-of-tolerance findings through formal deviation procedures.

•       Ensure pressure gauge calibration covers both the process range (mbar) and the safety/vent range (bar) where applicable.

6. Condenser Maintenance and Defrost Procedures

6.1 Rationale

The condenser (ice condenser) is the heat sink that captures water vapour sublimed from the product, preventing it from reaching and contaminating the vacuum pump. Condenser coils or plates are maintained at temperatures significantly below the product collapse temperature, typically between -50°C and -85°C. As ice accumulates on condenser surfaces during drying, thermal resistance between the coil and vapour interface increases. Excessive ice build-up reduces condenser capacity, elevates chamber pressure, and ultimately limits the drying rate.

6.2 Best Practices

•       Perform a full condenser defrost cycle after every production run or campaign to remove accumulated ice and prevent carryover contamination.

•       Inspect condenser coils or plates after defrosting for signs of corrosion, mechanical damage, or frost bridging between coils.

•       Verify condenser coolant flow rates and refrigeration system performance at scheduled PM intervals; reduced flow may indicate fouling or refrigerant charge issues.

•       Monitor condenser temperature during operation; inability to reach setpoint temperature within the specified time may indicate refrigeration system degradation.

•       Clean condensate drain lines regularly to prevent blockages that can allow melt water to accumulate in the condenser vessel.

7. Implementing a Structured Preventive Maintenance Programme

Individual maintenance tasks, while important in isolation, deliver their greatest value when integrated into a coherent, documented preventive maintenance (PM) programme. Key elements of an effective programme include:

•       A master PM schedule specifying task frequency (daily, weekly, monthly, quarterly, annually) aligned with equipment usage patterns and manufacturer recommendations.

•       Written standard operating procedures (SOPs) for each maintenance task, including acceptance criteria and escalation pathways for out-of-specification findings.

•       A computerised maintenance management system (CMMS) or equivalent logbook for recording task completion, observations, parts replaced, and personnel performing the work.

•       Spare parts inventory management ensuring critical consumables (pump oil, seals, gaskets, filter elements) are always available.

•       Integration of PM activities with the equipment qualification lifecycle, ensuring that post-maintenance verification (operational qualification checks) is performed after any significant intervention.

8. Conclusion

The consistent performance of freeze drying equipment is inseparable from the quality and discipline of its maintenance programme. Chamber and shelf cleanliness protects product from contamination and ensures uniform heat transfer. Vacuum pump integrity and clean oil are prerequisites for achieving and sustaining the sub-ambient pressures essential to sublimation. Seal and gasket condition directly governs vacuum integrity. Calibrated sensors and gauges underpin every process control and release decision. A well-maintained condenser provides the vapour capture capacity necessary for efficient drying cycles.

Organisations that invest in structured, documented preventive maintenance programmes consistently achieve higher equipment availability, lower rates of process deviation, and stronger regulatory inspection outcomes. As lyophilization technology advances — with increasing automation, inline monitoring, and data integrity requirements — robust equipment maintenance remains a foundational discipline that no technological sophistication can replace.
